Name: UGREEN USB-A 2.0 TO DB9 RS-232 MALE ADAPTER CABLE
SKU: UG-CR104-20210
Price: 30.00 MYR
Availability: InStock

UGREEN USB-A 2.0 TO DB9 RS-232 MALE ADAPTER CABLE

RM30.00

– Chipset: PL2303, Does not support cutting plotter and single chip microcomputer
– Speed up to 1 Mbps data transfer rate
– Support remote wake and power managerment
– Support full automatic handshake protocal for serial communication
– Connector gold-plated
– Supports Windows 8.1/8/7/Vista/XP/2000 and Mac OS X 10.6 and above and Linux

Compare

SKU: UG-CR104-20210 Category: CABLES

【USB Serial Cable UGREEN USB to RS232 DB9 Serial Male Converter Adapter Cable】 – designed to connect serial devices such as DB9 equipped PCs, routers, GPS, barcode scanners, label writers, serial modems, digital cameras, card readers, palm PCs, Cellular Phones, PDAs, or ISDN Terminal Adapters through USB port with over 1Mbps data transfer rate. Simply plug your device into the adapter and the adapter into your PC or Mac. COM ports and Baud rates can be modified to desired set up. – Wide Application Cisco Routers and Switches, Celestron Telescope Nexstar hand Controller and Extron and Crestron Products.

【USB 2.0 to RS-232 】 Installed as a standard Windows COM port, Full RS-232 modem control signals, RS-232 data signals; TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND; Has male thumbscrews.

【Works with devices with RS-232 serial ports】 Bluetooth serial adapters, telescopes, amateur radio gear, GPS receivers, routers, firewalls, modems, plotters, embedded character displays, scan tools, sonar units, embedded boards and many others.

– Specific devices include Garmin eTrex GPS, Seiko Label Printer, iRobot Create, Cisco products with serial consoles, US Robotics Modems, NexStar telescopes, Equus Scan Tools, Uniden Hand Held Scanners, etc.

– Works with software like HyperTerminal, TeraTerm, WinDBG, all open source serial software on Linux, etc.

【Easy to Set Up】 – This USB 2.0 to RS-232 Serial Adapter provides instant connectivity with modems, ISDN TAs, PDS, handheld & pocket PCs, digital cameras, POS, serial printers,label printer,and devices with DB9 SERIAL ports. Support almost all serial COM port.

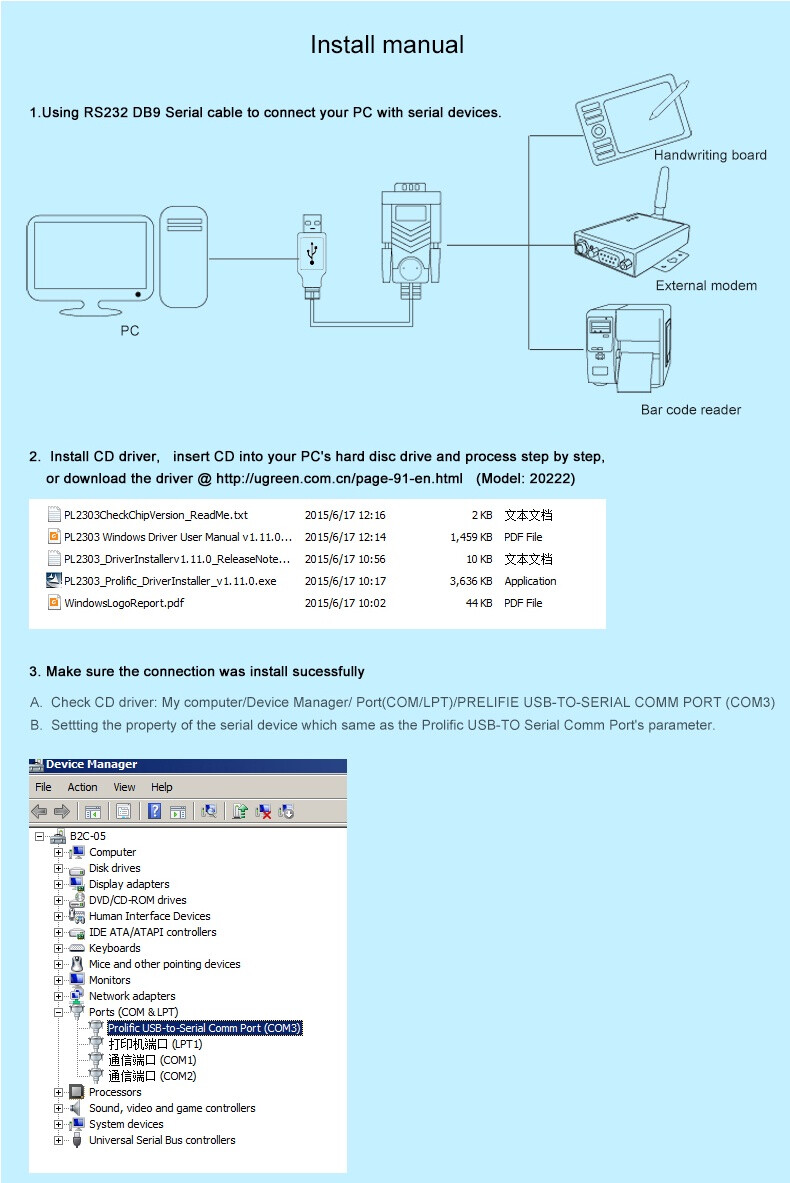

✔️HOW IT WORKS: Ugreen USB to RS232 DB9 Serial Adapter is designed for connecting to serial devices such as DB9 equipped serial modems, ISDN Terminal Adapters, digital cameras, label writers, palm PCs, barcode scanners, PDAs etc through USB port with 1Mbps data transfer rate;

✔️CONNECTORS: With standard USB Type A Male to standard 9-pin DB9 RS-232 serial connector;

CHIPSET & SUPPORTED OS: PL-2303 Chipset for widest possible compatibility with Windows (10/8.1/8/7XP), Mac, Linux, etc;

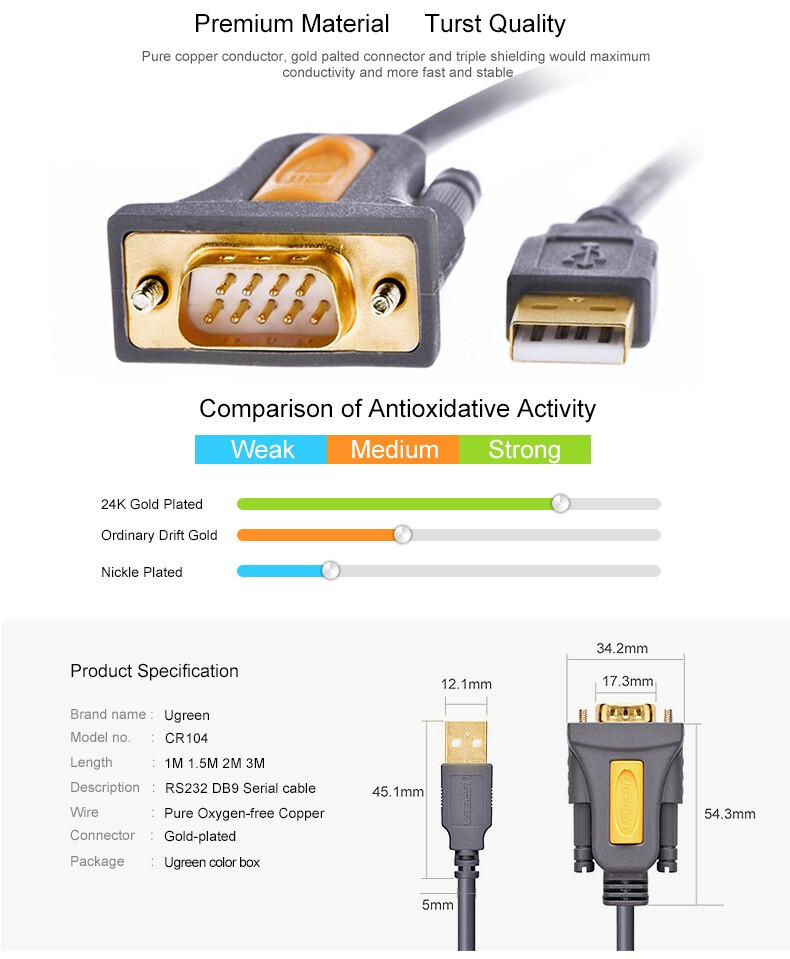

✔️CONDUCTOR & SHIELDING: Tinned Copper Conductor(Wire gauge) and triple shielding ensure the best data transfer rate. Powered by USB port, no external power adapter required. Simple installation, plug & play after one time driver installation;

【Supported Systems】

– -Windows 10/8/7/Vista/XP//2000 (Windows 7,8,10 should auto detect and install the drivers) – MAC OS X 10.6 and above (Both computer and device must support macOS) – Linux kernels 2.4.31 and later as we only use Prolific chips, our adapter is always compatible with the latest drivers from Prolific.

【Original Prolific】

-Built with the prolific Chipset, Provide more reliable and more compatible performance than competing products

– 1. Connectors: USB Male, RS232 Male;

– 2. Connect a RS-232 serial device such as a modem to a USB port on your computer;

-3. Supports Windows 10/8.1/8/7/Vista/XP//2000 and Mac OS X 10.6 and above;

– 4. Uses latest Prolific PL2303 chipset ;

– 5. Plug & Play after one time driver installation;

– 6. Maximum Transfer rate: up to 1Mbps;

– 7. Supports Automatic Handshake;

– 8. Powered by USB port, no external power adapter required.
