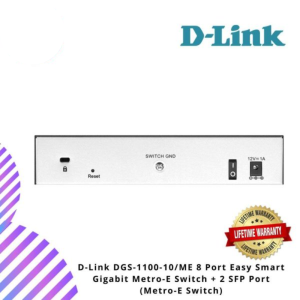

D-Link DGS-1100-10/ME 8 Port Easy Smart Gigabit Metro-E Switch + 2 SFP Port (Metro-E Switch)

General features

Number of Ports

• Eight 10/100/1000BASE-TX ports

• 2 combo 100/1000Base-T/SFP ports

Standards

• IEEE 802.3 compliance

• IEEE 802.3u compliance

• IEEE 802.3ab compliance

• IEEE 802.3x Flow Control

• IEEE 802.3az compliance

Performance

Switching Capacity

• 20 Gbps

64-byte Maximum Forwarding Rate

• 14.88 Mbps (based on 64 Bytes)

MAC Address Table Size

• 8K Entries

DRAM for CPU

• 128 MB

Packet Buffer

• 4.1 Mbit

Flash Memory

• 16 MB

Jumbo Frame

• Up to 10 Kbytes

LEDs

• Power (per device)

• Link/Activity/Speed (per port)

Power Consumption

Standby Mode

• 3.4 watts

Maximum

• 7.9 watts

Software Features

L2 Features

• MAC Address Table: 8K

• 802.3x Flow Control

  • HOL Blocking Prevention

• Loopback Detection

• Port Mirroring

  • Max 4 Mirror sessions

  • One-to-One

  • Many-to-One

L2 Multicasting

• IGMP Snooping

  • IGMP Snooping v1/v2, v3 Awareness

  • Supports 256 IGMP snooping groups (shared with MLD Snooping)

  • Host-based IGMP snooping Fast Leave

• IGMP Authentication

• MLD Snooping

  • MLD Snooping v1, v2

  • Supports 256 MLD snooping groups (shared with IGMP Snooping)

  • Host-based MLD Snooping Fast Leave

• Limited IP Multicast

VLAN

• 802.1Q Tagged VLAN

• VLAN Group

  • Supports 32 static VLAN groups

• Management VLAN

• Port-based VLAN

• ISM VLAN

• Double VLAN (Q-in-Q)

  • Port-based Q-in-Q

Quality of Service (QoS)

• 8 queues per port

• Queue Handling

  • Strict Priority

  • Weighted Round Robin (WRR)

• Bandwidth Control

  • Port-based (Ingress/Egress, min. granularity 16 Kb/s)

• CoS Based on:

  • 802.1p

  • DSCP

Security

• Port Security

  • Up to 64 MAC addresses per port

• Traffic Segmentation

• Broadcast/Multicast/Unknown Unicast Storm Control

• D-Link Safeguard Engine

AAA

• 802.1X

  • Port-based Access Control

  • Host-based Access Control

• Supports Guest VLAN

• Support Local/RADIUS Servers

• Support RADIUS Accounting

• 3 Levels of User Accounts

OAM

• Cable Diagnostics

• 802.3ah

Management

• Web-based GUI

• Command Line Interface (CLI)

• Telnet Server

• TFTP Client

• SNMP v1/v2c/v3

• SNMP Traps

• System Log

• RMON v1

  • Support 1,2,3,9 Groups

• LLDP

• DHCP Client

• DHCP Auto-Configuration

• DHCP Relay for IPv4/IPv6

• DHCP Relay Option 82

• DHCP Relay Option 37

• PPPoE Circult-ID Tag Insertion

• SNTP

• CPU Monitoring

• Password Encryption

MIB

• RFC1213 MIB II

• RFC1493 Bridge MIB

• RFC1907 SNMPv2 MIB

• RFC1398, 1643, 1650, 2358, 2665 Ether-like MIB

• RFC 2233, 2863 IF MIB

• RFC 2618 RADIUS Authentication Client MIB

• RFC2620 RADIUS Accounting Client MIB

• Private MIB

IETF Standard

• RFC768 UDP

• RFC791 IP

• RFC792,2463, 4443 ICMPv4

• RFC793 TCP

• RFC826 ARP

• RFC 2474, 3260 Definition of the DS Field in the IPv4 and IPv6 Header

• RFC 1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP)

• RFC2571, RFC2572, RFC2573, RFC2574 SNMP

• RFC1981, RFC2460, RFC2461,4861, RFC2462,4862, RFC2464, RFC3513,4291, RFC2893,4213
