Hardware Features
-
Interface: PCI Express.
-
Dimensions: 4.76 × 3.09 × 0.85 inches (120.8 × 78.5 × 21.5 mm).
-

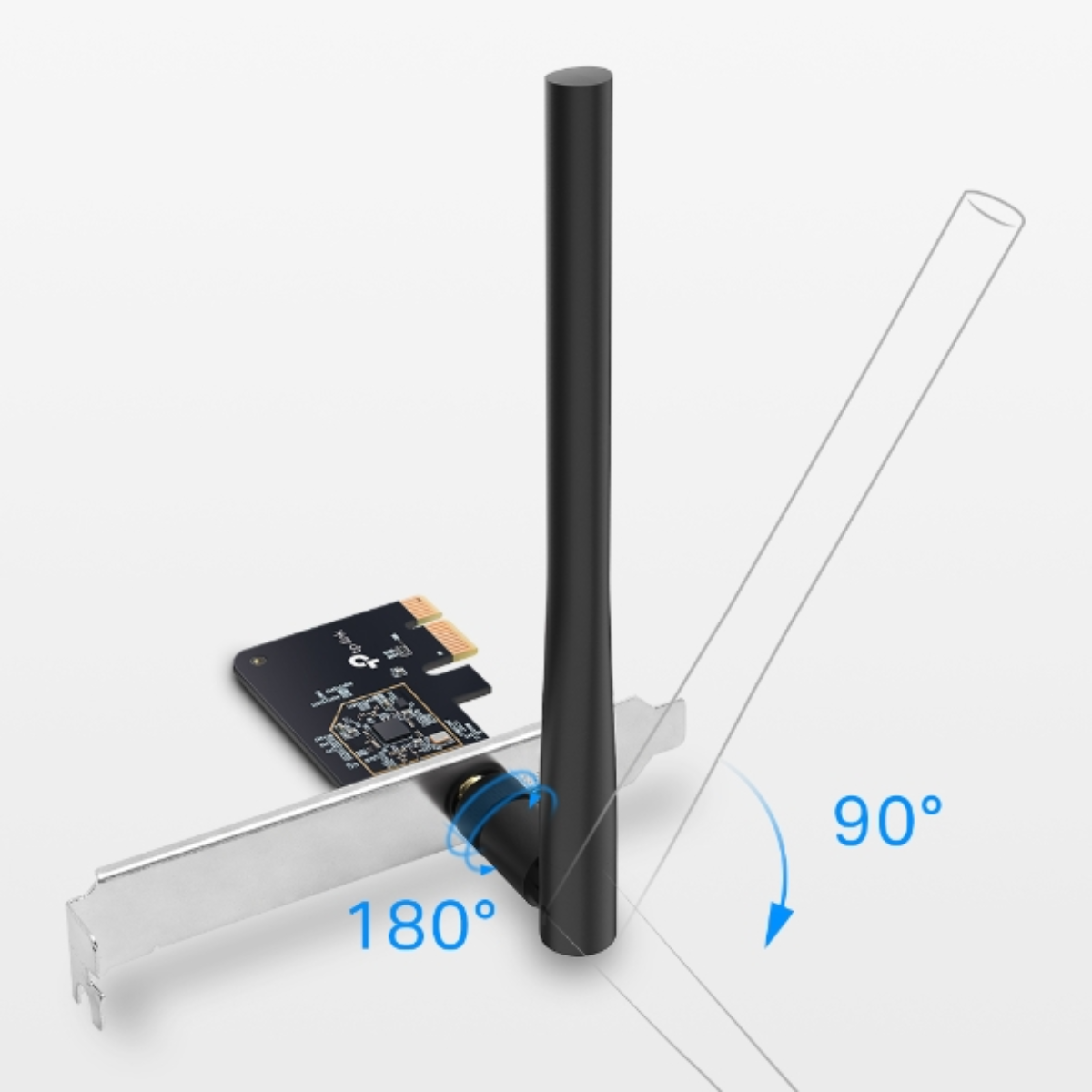

Antenna: One detachable external antenna for flexible positioning and improved signal reception.
Wireless Features
-
Wireless Standards:
-
5 GHz: IEEE 802.11a/n/ac.
-
2.4 GHz: IEEE 802.11b/g/n.
-
-
Signal Rate:
-
5 GHz:
-
Up to 433 Mbps (11ac).
-
Up to 200 Mbps (11n).
-
Up to 54 Mbps (11a).
-
-
2.4 GHz:
-
Up to 200 Mbps (11n).
-
Up to 54 Mbps (11g).
-
Up to 11 Mbps (11b).
-
-
-
Reception Sensitivity:
-
5 GHz:
-
11ac HT80: -59.0 dBm.
-
11n HT40: -68.0 dBm.
-
11a 54Mbps: -73.0 dBm.
-
-
2.4 GHz:
-
11n HT40: -70 dBm.
-
11g 54Mbps: -75 dBm.
-
11b 11Mbps: -87 dBm.
-
-
-
Transmit Power:
-
5 GHz: Up to 18 dBm (FCC) / 23 dBm (CE).
-
2.4 GHz: Up to 18 dBm (FCC) / 20 dBm (CE).
-
-
Modes: Infrastructure mode.
-
Security: Supports WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK/WPA3-SAE.
-
Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM.
Other Specifications
-
Certification: FCC, CE, RoHS.
-
System Requirements: Compatible with Windows 11/10 (64-bit).
-
Environmental Conditions:
-
Operating Temperature: 0℃ to 40℃ (32℉ to 104℉).
-
Operating Humidity: 10–90% non-condensing.
-
Package Contents
-

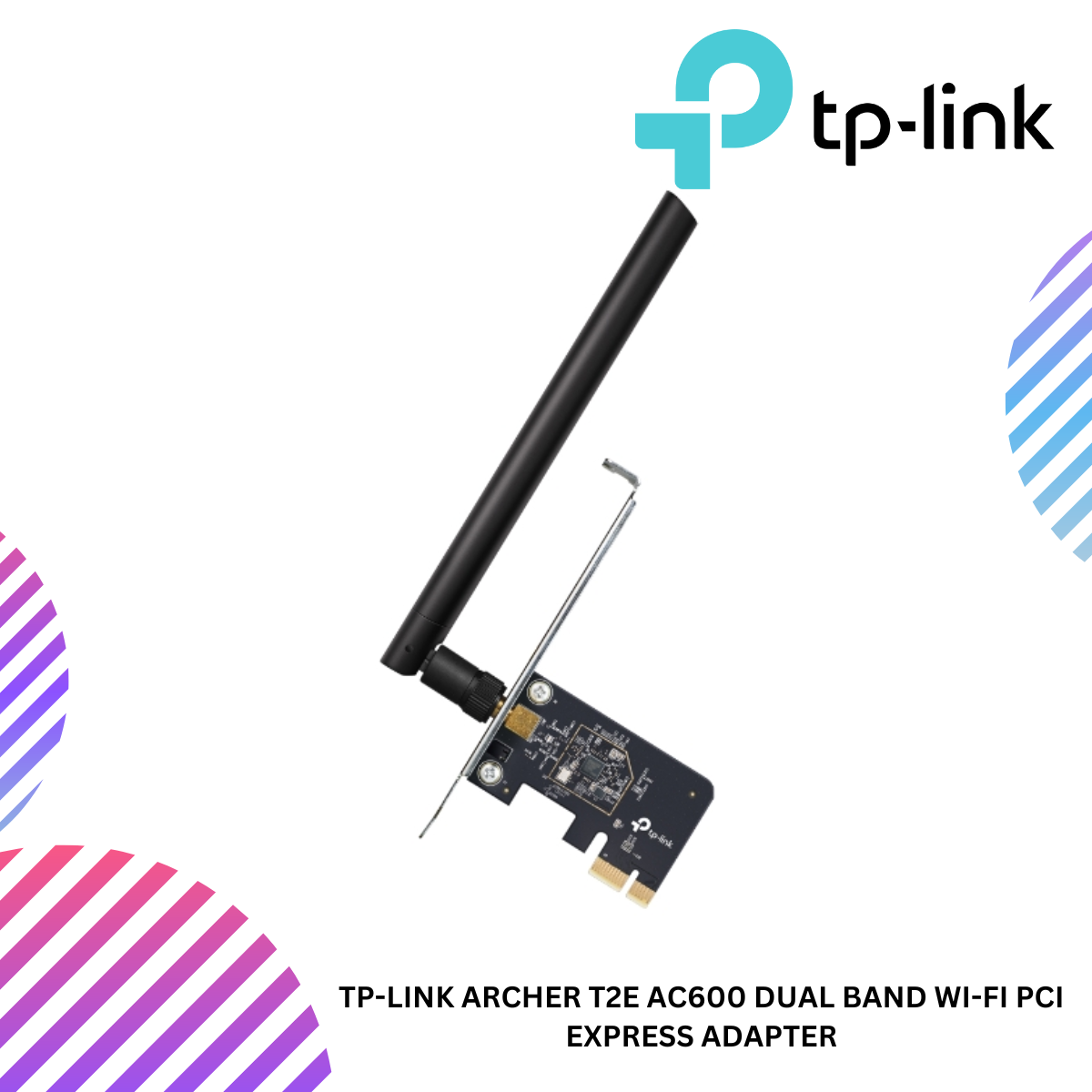

Archer T2E Wireless Dual Band PCI Express Adapter.
-

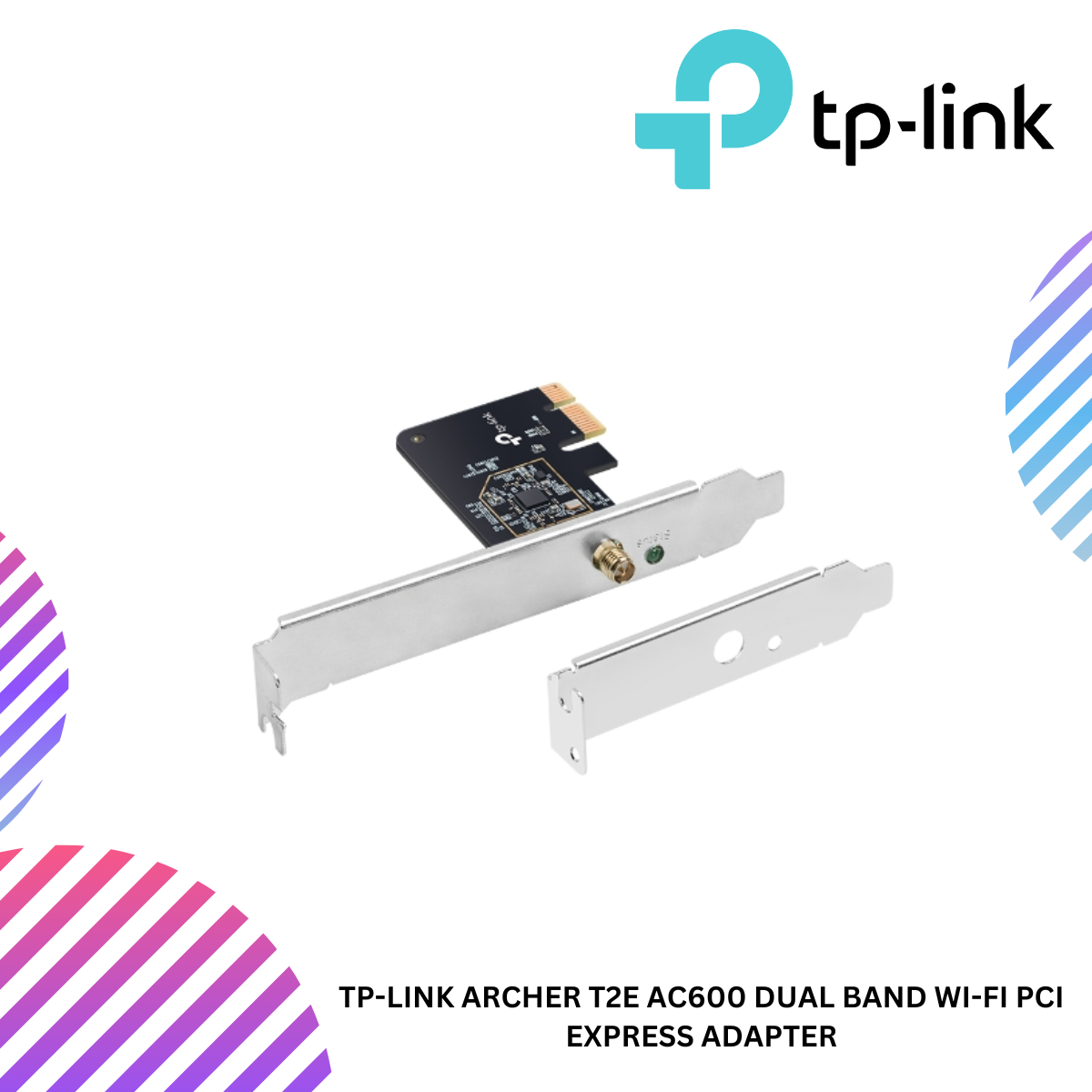

Low-profile bracket for easy installation in smaller spaces.
-
Quick installation guide.
-
Resource CD for software and drivers.
